Explore hole placement in clamped square plate

Introduction

This example is based on the reference: http://www.mathworks.com/matlabcentral/fileexchange/34870-deflection-of-a-square-plate-calculated-with-pde-toolbox. The example -

It is recommended that the reference example be looked into first for background theory on this example.

Requirements: PDE Toolbox, Helper classes for PDE Toolbox

Optional: Image Processing Toolbox

%
function [] = clamped

import pdetbplus.*; % import helper classes: geometryObject, boundary (lineObject etc), boundaryConditionObject and coeffsObject

Plate parameters, geometry & mesh

len = 10; % dimension of square plate

% translations of punch hole along diagonal of square
translations = [pointObject(0,0),pointObject(1,1),pointObject(1.5,1.5),pointObject(2,2),pointObject(2.5,2.5),pointObject(2.75,2.75)];
plateWithoutHole = geometryObject.createSquare('name','plate','edgeStartPoint',pointObject(0,0),'edgeEndPoint',pointObject(0,len),...
    'innerRegion','plateMaterial','outerRegion','outer','clockwise',true,'leaveOpen',false);

% collect names of plate-wall boundary segments. This is for setting BCs on the
% plate-wall boundary
wallBoundaryNames = cell(length(plateWithoutHole.boundary),1);
for kk = 1:length(wallBoundaryNames)
    wallBoundaryNames{kk} = plateWithoutHole.boundary{kk}.name;
end

% initialize minimum deflection vector
minDeflection = zeros(size(translations));

Set up boundary condition and coefficient functions

N = 2; % dimension of problem
% define BC along wall-plate boundary. The particular form of the BC is
% explained later
    function [hval,rval,qval,gval] = bcondWall(x,y,u,t)
        % Dirichlet condition on the boundary
        rval = zeros(N,1);
        hval = sparse(N,N);
        hval(2,2) = 1;
        % A placeholder to find row numbers in global H corresponding to
        % w - alpha = 0; r will be set to 0 later
        rval(2,1) = 1;
        qval = sparse(N,N);
        gval = zeros(N,1);
    end
% define coefficient functions
    function cij = cCoeffPlate(x,y,u,ux,uy,time)
        % cij is an 2N x 2N matrix per the PDE Toolbox documentation
        cij = sparse(2*N,2*N);
        cij(1:4,1:4) = sparse([1 0 0 0; 0 1 0 0; 0 0 D 0; 0 0 0 D]);
    end
    function fi = fCoeffPlate(x,y,u,ux,uy,time)
        % fi is an N length vector
        fi = zeros(N,1);
        fi(2) = pres;
    end
    function aij = aCoeffPlate(x,y,u,ux,uy,time)
        % aij is an NxN matrix
        aij = sparse(N,N);
        aij(1:2,1:2) = [-1 1;-D D];
    end

Loop through locations of hole in plate

for k=1:length(translations)

    plate = plateWithoutHole;
    useImage = true; % set to false to use simple geometry (does not require Image Processing Toolbox)
    if useImage
        % create geometry from punch hole pattern specified by image (requires
        % Image Processing Toolbox)
        [openings,isClockwise] = geometryObject.createGeometriesFromImage('image','llapr.png');
        opening = openings{1};
        % now that the image is created, this is scaled appropriately
        % get current limits
        [xmin,ymin,xmax,ymax] = opening.getLimitsXY();
        % scale X limits
        opening = opening.scaleX(0.15*len/(xmax-xmin));
        % scale Y limits
        opening = opening.scaleY(0.15*len/(ymax-ymin));
        % get scaled limits
        [xmin,ymin,xmax,ymax] = opening.getLimitsXY();
        % translate to center of square
        opening = opening.translate(pointObject(len/2-xmin-(xmax-xmin)/2,len/2-ymin-(ymax-ymin)/2));
        % set interior and exterior regions
        opening = opening.setInteriorExteriorRegions('outer','plateMaterial',isClockwise);
    else
        % use a circle instead of image for hole
        opening = geometryObject.createCircle('circularHole',pointObject(len/2,len/2),1,'outer','plateMaterial');
    end
    opening = opening.translate(translations(k));
    plate = plate + opening; % we are done with the geometry
    plate = plate.translate(pointObject(-len/2,-len/2)); % center plate at (0,0)
    plate.exteriorRegion = 'outer';
    % one can also pass any of the options for initmesh() in PDE Toolbox.
    % Below we restrict Hmax to be 1/20th of the plate dimension
    plate = plate.initMesh('showMesh',false, 'numRefineMeshSteps',1,'Hmax',len/20);
    % Material properties
    E = 1e6; % Modulus of elasticity
    gnu = 0.3; % Poisson's ratio
    thick = 0.1; % thickness of plate
    pres=2; % external pressure
    D = E*thick^3/(12*(1-gnu^2));

Convert 4th order PDE to Elliptic PDE System

The plate equation PDE is the 4th order PDE as in (A). It will be solved with an alternative method to the "stiff-spring" method of imposing BCs.

(A)

$$\nabla^2(D\nabla^2 w) = p$$

with BCs, $w = 0, \nabla w.\hat{n} = 0$ on the wall-plate boundary. We do not explicitly specify BC for the plate-hole boundary since that boundary has natural BCs.

We introduce an intermediate variable $v$, to convert (A) into an elliptic or 2nd order PDE system since the PDE Toobox does not handle 4th order PDEs directly. (A) is thus equivalently represented by (B), (C) and (D).

(B)

$$\nabla^2 w = v - w$$

with $\nabla w.\hat{n} = 0$ on the plate-wall boundary. This form is chosen to make problem well posed with Neumann conditions. On the other hand the $\nabla^2 w = v$ form is singular w.r.t. Neumann conditions on $w$.

(C)

$$D \nabla^2 v = D (v - w) + p$$

with Dirichlet BC on the plate-wall boundary:

$$v = \alpha = [\alpha_1;\alpha_2...]$$

where $\alpha$ is To Be Determined. $\alpha$ is a numBoundaryNodes vector where numBoundaryNodes = # boundary nodes only on the plate-wall boundary

(D)

$$w = 0$$

on the plate-wall boundary. This Dirichlet BC is not enforced as a BC for (B) but instead needs to be imposed separately (because Neumann BC has already been imposed in (B)). Note that the alternative form described in (B) would have required the more unattractive prospect of setting Neumann BC to zero instead of the Dirichlet BC shown here.

New variables and equations equal to numBoundaryNodes in number are introduced in (C) and (D) respectively. Therefore the linear system corresponding to (B), (C) and (D) that we solve is

$$\pmatrix{K+M & H^T & 0 \cr H & 0 & I_\alpha\cr I_w & 0 & 0 \cr } \pmatrix{\pmatrix{w \cr v} \cr \lambda \cr \alpha \cr} = \pmatrix{F \cr 0}$$

where

$\lambda$ is a 2*numBoundaryNodes vector of Lagrange multipliers (see PDE Toolbox documentation on pdebound()),

$I_w$ is a numBoundaryNodes $\times$ 2*numNodes matrix where $I_w(i,j) = 1$ if $j = i^{th}$ $w$ boundary node variable, $0$ otherwise.

$I_\alpha$ is a 2*numBoundaryNodes $\times$ numBoundaryNodes matrix where $I_\alpha (i,j) = 1$ if $i = j^{th}$ $v$ boundary node variable, $0$ otherwise.

$K,M$ are 2*numNodes $\times$ 2*numNodes, $H$ is 2*numBoundaryNodes $\times$ numNodes, $F$ is 2*numNodes $\times$ $1$ and are obtained from the FEM.

BCs

    bc = boundaryConditionObject(plate, N); % instantiate BC object
    for kk = 1:length(wallBoundaryNames)
        bc.add('name',wallBoundaryNames{kk},'xyutFunction',@bcondWall);
    end

Coefficients

    coeff = coeffsObject(plate, N); %instantiate coeffs object
    coeff.add('region','plateMaterial','fiFunction',@fCoeffPlate,'cijFunction',@cCoeffPlate,'aijFunction',@aCoeffPlate);

Linear solve

    numNodes = size(plate.mesh.p,2);
    u0 = zeros(N*numNodes,1);
    [K,M,F] = coeff.getMatrices('u',u0);
    [~,~,H,R] = bc.getMatrices();
    % identify boundary nodes; cannot be done before meshing! and therefore
    % cannot be specified outside the main loop
    boundaryNodes = [];
    for kk = 1:length(wallBoundaryNames)
        boundaryNodes = [boundaryNodes plate.getBoundaryNodes('name',wallBoundaryNames{kk})];
    end
    boundaryNodes = unique(boundaryNodes); % remove nodes common to these contiguous boundary segments
    numBoundaryNodes = length(boundaryNodes);
    I_w = sparse(numBoundaryNodes,size(K,2));
    I_w(:,boundaryNodes) = speye(numBoundaryNodes);
    I_alpha = sparse(size(H,1),numBoundaryNodes);
    I_alpha(R > 0,:) = speye(numBoundaryNodes);
    A = [K+M H' sparse(size(K,1),numBoundaryNodes)
        H sparse(size(H,1),size(H,1)) I_alpha
        I_w sparse(numBoundaryNodes,size(H,1)+numBoundaryNodes)];
    B = [F;zeros(numBoundaryNodes+size(H,1),1)];
    wvLambdaAlpha = A\B;
    wv = wvLambdaAlpha(1:N*numNodes); % extract w and v

Post-process to get minimum deflection and deflection profile along plate diagonal

    numNodes = size(plate.mesh.p,2);
    minDeflection(k) = min(wv(1:numNodes,1));
    fprintf('Transverse minimum deflection = %12.4e\n',minDeflection(k));

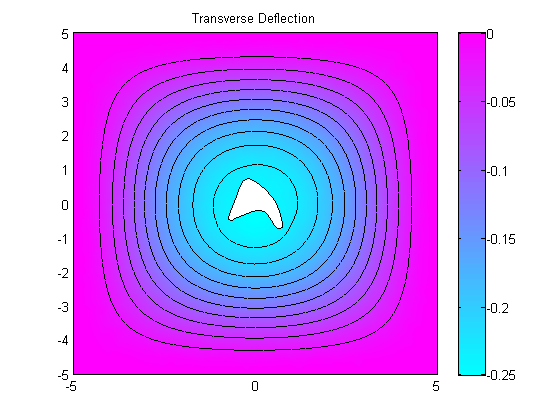

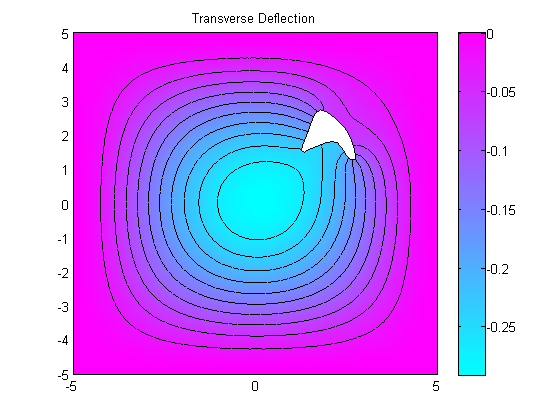

    figure(1);

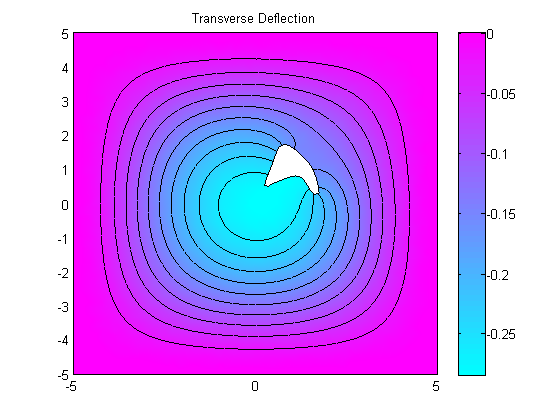

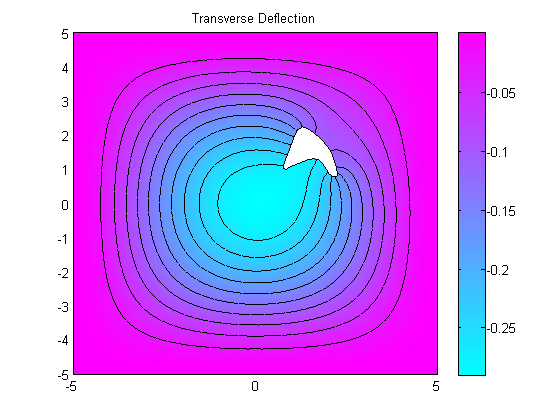

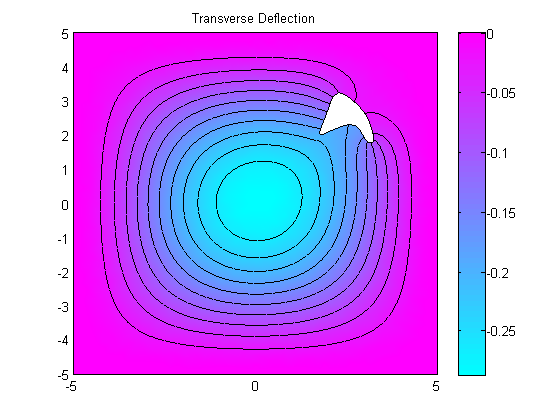

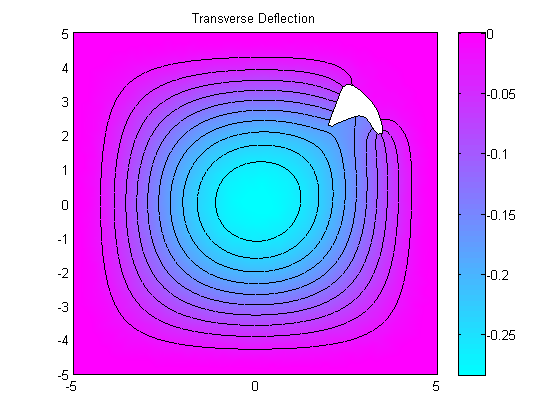

    pdeplot(plate.mesh.p, plate.mesh.e, plate.mesh.t, 'xydata', wv(1:numNodes), 'contour', 'on');
    title 'Transverse Deflection';

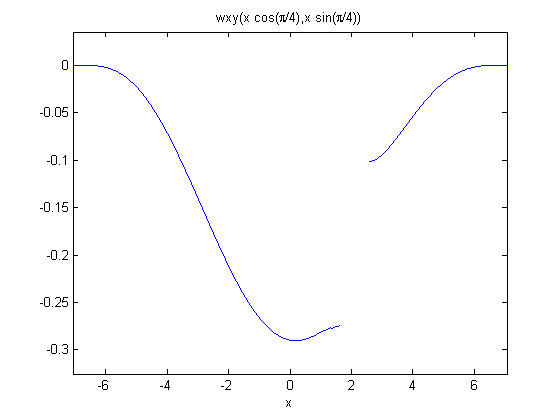

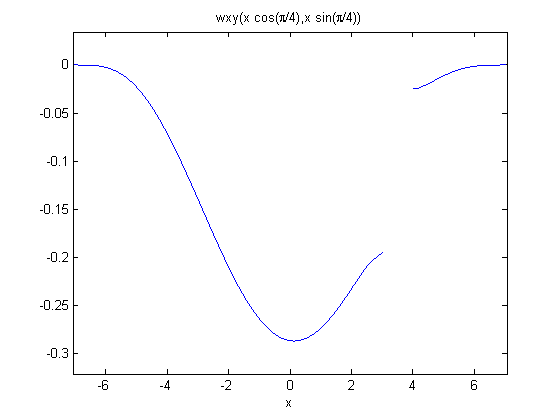

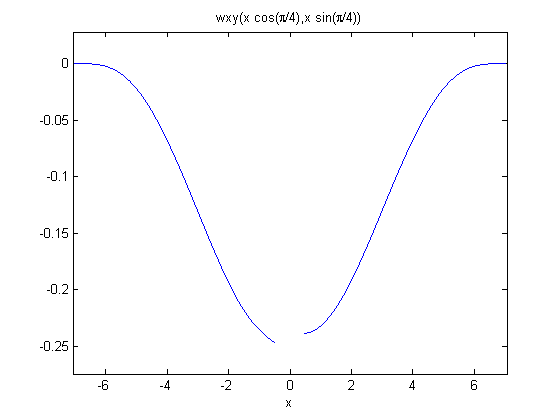

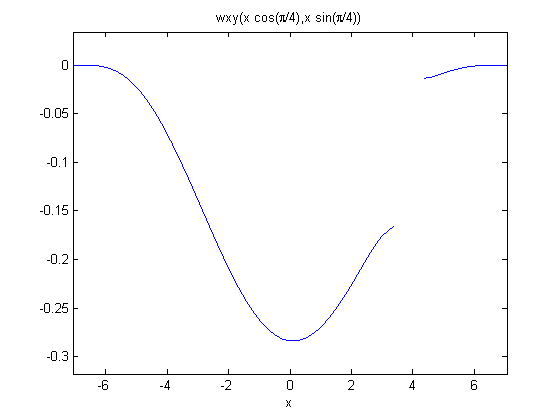

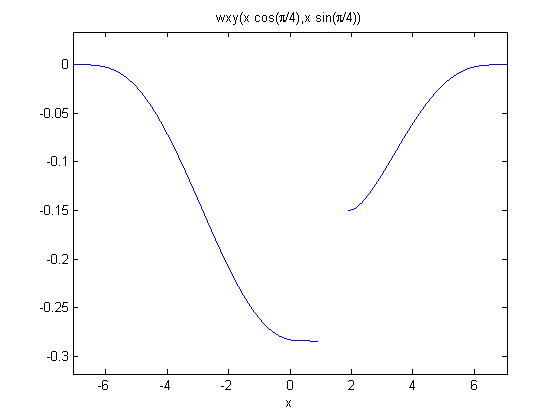

    % plot deflection along diagonal

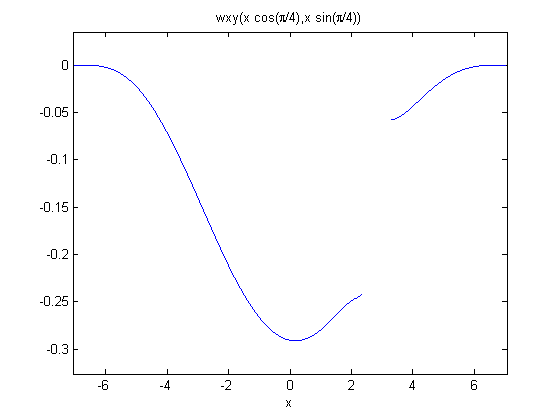

    wxy = plate.createXYFunctionFromNodalSolution(wv(1:numNodes));
    wdiagonal = @(x) wxy(x*cos(pi/4),x*sin(pi/4));
    figure(3);
    ezplot(wdiagonal,sqrt(2)*[-5,5]);

Transverse minimum deflection =  -2.5031e-01

Transverse minimum deflection =  -2.8463e-01

Transverse minimum deflection =  -2.9050e-01

Transverse minimum deflection =  -2.9148e-01

Transverse minimum deflection =  -2.8695e-01

Transverse minimum deflection =  -2.8380e-01

end

Calculate minimum deflection across all design points

[~,minIx] = min(minDeflection);
fprintf('Minimum Deflection occurs for Design point #%d\n',minIx);

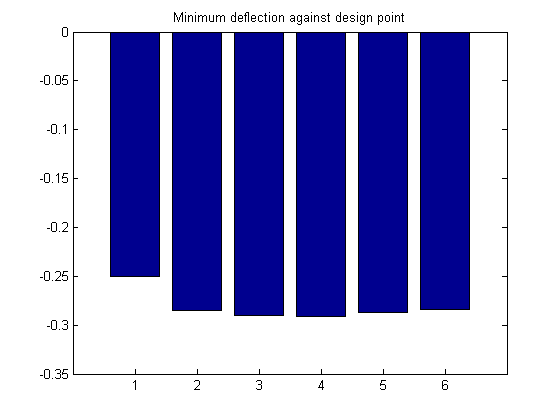

figure(2);
bar(minDeflection);
title 'Minimum deflection against design point';

Minimum Deflection occurs for Design point #4

Documentation of classes

See help for geometryObject pointObject coeffsObject boundaryConditionObject

More info and other examples

See other examples
